90 Degree Amphenol 64 Pin Male Plug Centronics Connector IDC Type

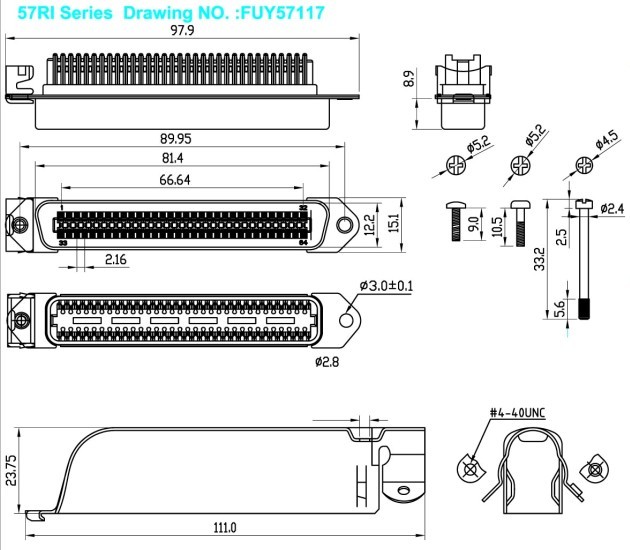

FUY57117 2.16mm Pitch 32 pairs Amphenol Champ IDC Connector 64P Male Plug Type 90 Degree Cable outlet
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
| Product Features: |
| Product Type: | Centronics IDC Connector |
| Product Line: | Champ Connector |
| Gender: | Male |
| Connector Style: | Plug |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 64 pin / 32 pairs |
| Contact Plating: | Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U" |
| Insulator Color: | Grey or Blue |
| Shielded: | Yes |
| Orientation: | 90 Degree Cable Exit |
| Mating connector lock: | Screwlocks |
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Connector Style:Plug
Number of Terminal: 64 pin / 32 pairs
Gender: Male
Insulator Color: Grey or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mounting Option: Side Cable Exit
Cover: Metal Cover
Application: for Huawei DSLAM
Cable Specification: 22/24 WAG, 0.5 Copper Solid Conductor
| Common Features: |
| Designed for Cable-to-cable and cable-to-PC Board applications |
| Avilable in Plug & Socket Style |
| Terminal Option with various types |
| Connector and hood sold as complete assembly |
| Avilable in low profile hood style |
| Metal shell provides grounding and shielding capability |
| Mates with industry compatible connector |
| Materials |
| Contact Material: | Phosphor Bronze |
| Insulator: | PBT (UL 94-V0) |
| Housing Material: | Nickel Plated Steel |
| Electrical Character |
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
| Application |
| 1, VDSL Teleccom Equipment |
| 2, Computer Peripherals |
| 3, Communication Equipment |
| 4, Huawei DSLAM |
Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Technology Parameters
