50 Pin Centronic Connectors , Straight Angle PCB Male Connector Certified UL

Name: 50 Pin Centronic Connectors Straight Angle PCB Male Connector Certified UL
Brand: FUYCONN
Price: 1 USD

China 50 Pin Centronic Connectors , Straight Angle PCB Male Connector Certified UL wholesale

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57093

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Product Name : Centronics Connector

Product Line : Champ Connector

Type : Straight Angle PCB Connector

Connector Style : Plug

Number of Terminal : 14pin 24pin 36pin 50pin

Gender : Male

Contact Now

50 Pin Centronic Connectors , Straight Angle PCB Male Connector Certified UL

FUY57093 DDK DIP Type Straight Angle PCB Mounting Male 50 pin centornix Connector 25 pair Plug Header

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Straight Angle PCB Connector
Number of Terminal: 50 pin
PCB Mount Style:Vertical
Connector Style:Plug
Gender: Male
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mating Lock: Back Rivet Board Lock
Application: PCB Board

Advantage

1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics PCB Mounting Connector
Product Line:	Champ Connector
Gender:	Male
Connector Style:	Plug
Certerline :	2.16mm(0.85in)
Number of Position:	50 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type	Straight Terminals
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Parllel Lines
Mating connector lock:	Screws Lock

Materials

Contact Material:	Phosphor Bronze
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

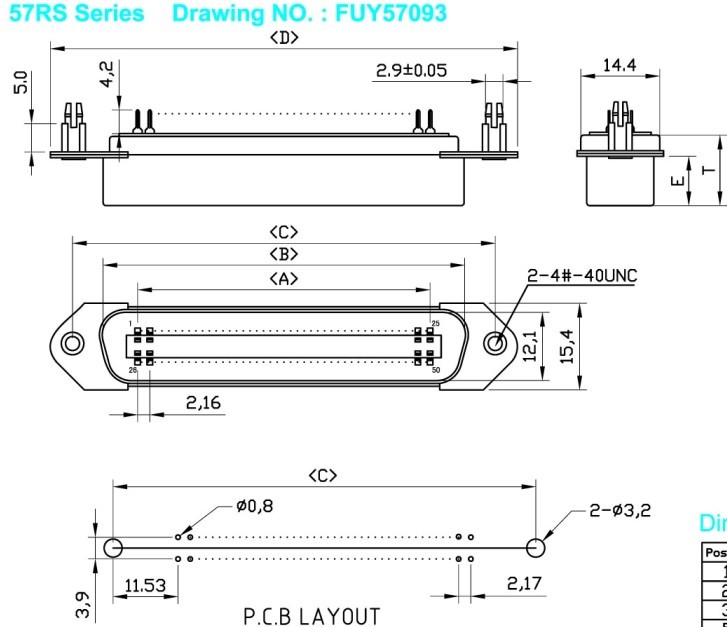

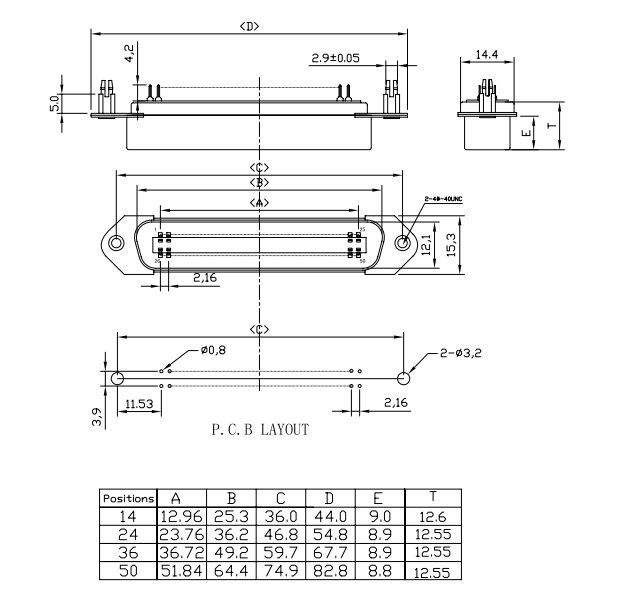

Technology Parameters

50 Pin Centronic Connectors , Straight Angle PCB Male Connector Certified UL
