Brand Name : FUYCONN
Model Number : 57-30 DDK Connector
Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Place of Origin : China
MOQ : 10pcs
Price : Negotiable
Payment Terms : T/T or Paypal
Supply Ability : 1 million/ month
Delivery Time : 7-10 days
Packaging Details : Vacuum Tray + Carton
connector name : Centronic connector
connector type : 57-30 DDK Connector
gender : male connector
no. of pin : 14pin/24pin/36pin/50pin
pitch : 2.16mm pitch connector
contact material : phosphor bronze
gold plating : 1u", 3u", 5u", 10u", 20u", 30u"
insulation color : black or blue
insulation material : PBT
application : Cable
Contact Type : Solder Cup
5730140 5730240 5730360 5730500 Connector 57-30 DDK Connector Solder Cup Contacts
Catalog: CENTRONIC CONNECTOR.pdf
Advantage
1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days
Application
1, VDSL Teleccom Equipment | |
2, Computer Peripherals | |
3, Communication Equipment | |
4, PCB Board | |
5, Cable to Panel | |
6, Cable to cable | |
7, Computer terminal | |
8, Telemetering | |
9, Test Equipment | |
10, Printer |
Common Features
Designed for Cable-to-cable and cable-to-PC Board applications | |
Board Application | |
Available in Plug & Socket styles | |
Terminal Option with various types | |
Connector and hood sold as complete assembly | |
Available in low profile hood style | |
Metal shell provides grounding and shielding capability | |
Mates with industry compatible connector |
Current Rating: | 5Amp |
Withstanding Voltage: | AC 1000v r.m.s |
Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
Contact Resistance: | 25M∩ Max Mated |
Operation Temperature: | -55°C to +105°C |
![]() |

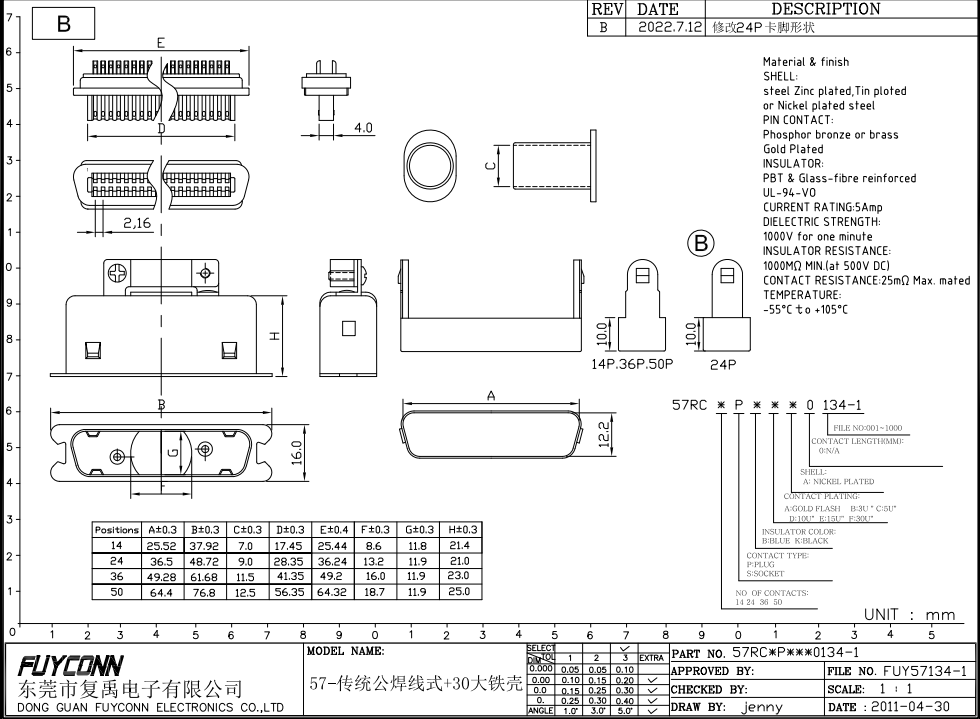

5730140 5730240 5730360 5730500 Connector 57-30 DDK Connector Solder Cup Contacts Images |
