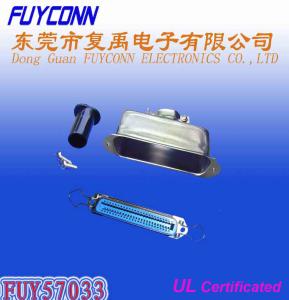

14 24 36 50 Pin Solder Female Receptacle Type Centronix Connector with 180 degree Metal Cover

Name: 14 24 36 50 Pin Solder Female Receptacle Type Centronix Connector with 180 degree Metal Cover
Brand: FUYCONN
Price: 1 USD

China 14 24 36 50 Pin Solder Female Receptacle Type Centronix Connector with 180 degree Metal Cover wholesale

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57033

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

connector name : centronic connector

type : solder type connector

no. of pin : 14pin 24pin 36pin 50pin

pitch : 2.16mm pitch connector

cover : 180 degree metal cover

gender : female connector

gold plating : 1U", 3U", 5U", 10U", 15U",30U"

color : black or blue

Contact Now

14 24 36 50 Pin Solder Female Receptacle Type Centronix Connector with 180 degree Metal Cover

FUY57033 180 degree Metal Cover Solder pins Connector 14 24 36 50 pin Female Type

Detail Description:

Product Category: Centronic connector

Connector Style:Receptacle

Product Line: Champ Connector

Number of Terminal: 14 24 36 50pin

Type: Centronic Solder Connector

Gender: Female

Centerline = 2.16mm [0.085in]

Insulator Color: Black or Blue

Insulator Material: PBT

Contact pin Material: Brass

Shield Plating: Nickel

Mounting Option: 180 Degree Cable Exit, Triangle Plate, Bail Clip

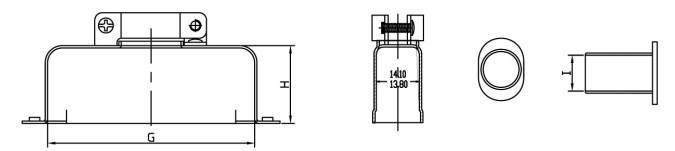

Conver Style: 180°Cable Outlet Metal Hood

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	14 24 36 50pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	180 Degree Cable Exit
Mating connector lock:	Screwlocks
Cover	Metal Hood

Materials

Contact Material:	Phosphor Bronze
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel
Housing Material:	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

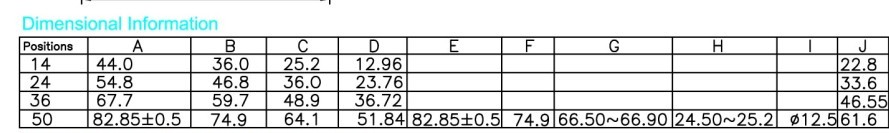

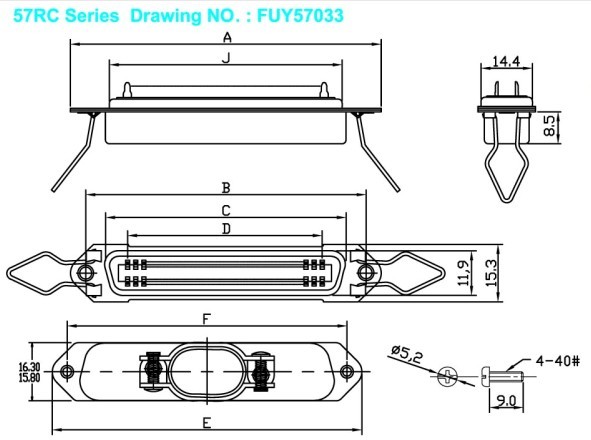

Technology Parameters

14 24 36 50 Pin Solder Female Receptacle Type Centronix Connector with 180 degree Metal Cover
